Alignment Throughput#
The following reports throughput for several alignment modes on a Linux HPC system. They summarize how backend and batching choices affect wall-clock cost across workloads.
Experiment#
Experiments use 98 diverse drugs (50–800 g/mol), randomly paired under a fixed seed with shared embedded conformers.
Alignments are run through the MoleculePair and MoleculePairBatch APIs, which wrap the same optimization routines.

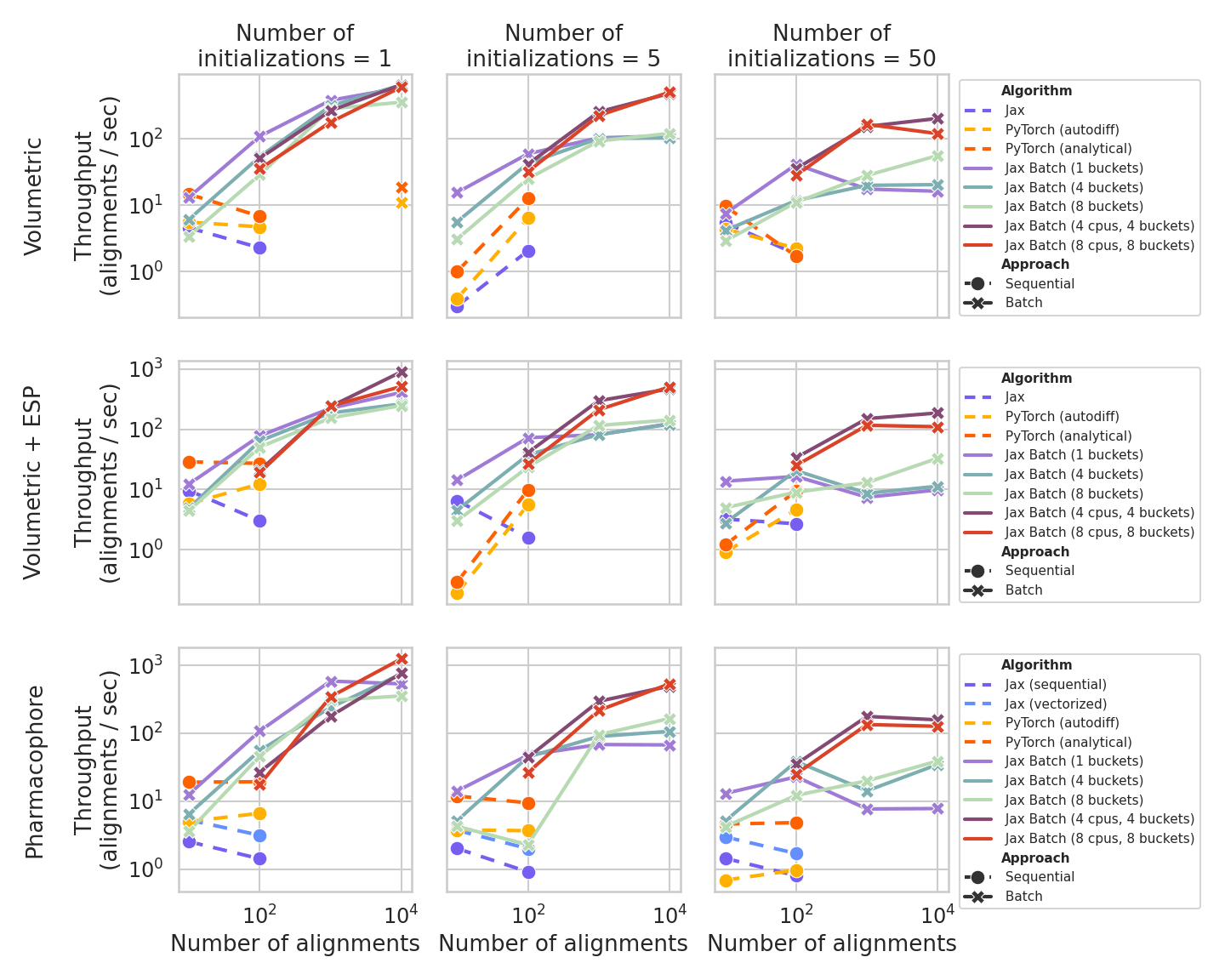

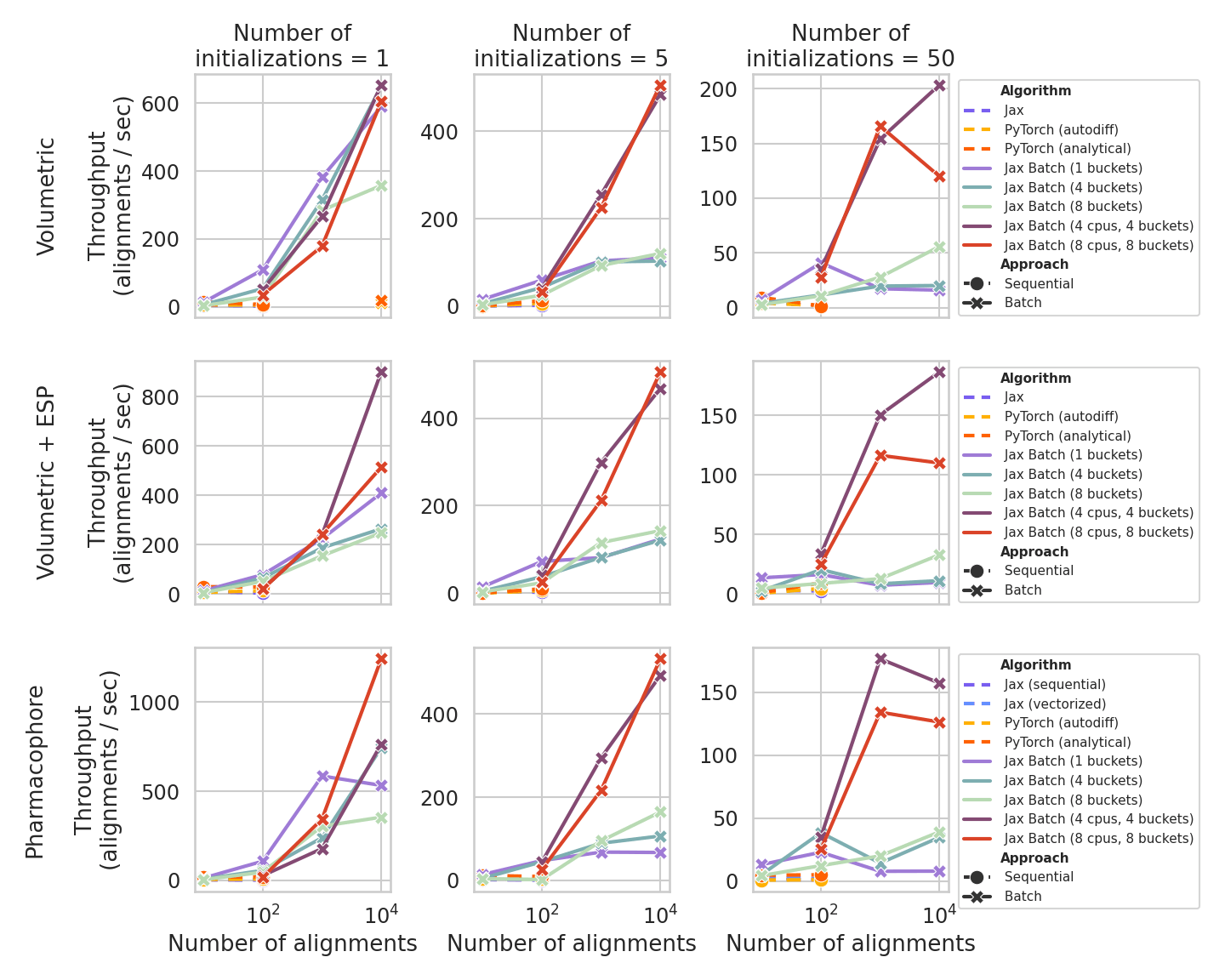

The figure below focuses on volumetric, volumetric + ESP (partial charge), and pharmacophore alignment for pair counts from 10 to 10,000 at each order of magnitude.
We also vary the number of SE(3) initializations (num_repeats) at 1, 5, and 50.
The default in MoleculePair and MoleculePairBatch is 50, which matters most for surface and surface + ESP similarity; for non-surface modes, five repeats are typically adequate.
The five-initialization setting corresponds to one identity alignment plus four principal-component–based starts.
The four principal-component starts match the intiialization count in RDKit/PubChem shape–color alignment.
Tabulated results below therefore use num_repeats = 5.
Note: For the sequential alignments,
optimize_{*}_overlay{*}functions were directly used rather than through the API call in MoleculePair.
Benchmark results#
At small batch sizes, the PyTorch analytical-gradient path is generally fastest and remains the default in MoleculePair as it is easily parallelizable via multiprocessing across devices–unlike Jax.
For longer runs where the number of pairs grows, padded-batch Jax (MoleculePairBatch which unifies shapes under-the-hood) improves throughput once alignment count is on the order of 100 or higher, chiefly because a single JIT compilation amortizes over the batch.
Additional speedup is possible with multi-device parallelism via shard_map; the gain may be hardware- and environment-dependent.
Bucketing groups similarly sized molecules to reduce padding overhead but increases the number of distinct compiled kernels, so it trades wasted arithmetic against compilation cost; it is most valuable when molecular size varies widely across the set.
Tabulated throughput for different modalities at num_repeats = 5#
The tables list throughputs for num_repeats = 5 by modality.
Configurations that exhausted memory—notably batched surface and surface+ESP runs—are omitted; batched surface alignment is not recommended in this setting.
Sequential alignment via MoleculePair for Jax and PyTorch modalities were only evaluated for <100 pairs because these do not scale.
Multiprocessed MoleculePairBatch was evaluated for >100 pairs.
Volumetric alignment — alignments/s#
Approach |
n = 10 |
n = 100 |
n = 1000 |
n = 10000 |
|---|---|---|---|---|
Jax Volume |
0.30 |
2.05 |
- |
- |
PyTorch (autodiff) |
0.39 |
6.35 |
- |
- |
PyTorch (analytical) |
1.00 |
12.54 |
- |
- |
Jax Batch (1 bucket) |
15.54 |
59.57 |
103.69 |
110.59 |
Jax Batch (4 buckets) |
5.63 |
42.63 |
101.42 |
103.18 |
Jax Batch (8 buckets) |
3.08 |
25.01 |
93.00 |
120.69 |
Jax Batch (4 cpus, 4 buckets) |
- |
41.51 |
255.56 |
484.05 |
Jax Batch (8 cpus, 8 buckets) |
- |
31.99 |
225.60 |
506.64 |
Volumetric + ESP alignment — alignments/s#
Approach |
n = 10 |
n = 100 |
n = 1000 |
n = 10000 |
|---|---|---|---|---|
Jax Volume+ESP |
6.52 |
1.58 |
- |
- |
PyTorch (autodiff) |
0.19 |
5.57 |
- |
- |
PyTorch (analytical) |
0.29 |
9.84 |
- |
- |
Jax Batch (1 bucket) |
14.35 |
72.49 |
81.25 |
123.70 |
Jax Batch (4 buckets) |
4.54 |
37.55 |
81.90 |
121.04 |
Jax Batch (8 buckets) |
3.02 |
23.59 |
115.76 |
143.04 |
Jax Batch (4 cpus, 4 buckets) |
- |
40.92 |
299.10 |
468.43 |
Jax Batch (8 cpus, 8 buckets) |
- |
26.68 |
212.16 |
506.33 |
Pharmacophore alignment — alignments/s#
Approach |
n = 10 |
n = 100 |
n = 1000 |
n = 10000 |
|---|---|---|---|---|
Jax Pharmacophore (base) |
2.01 |
0.91 |
- |
- |
Jax Pharmacophore (vectorized) |
3.73 |
2.00 |
- |
- |
PyTorch (autodiff) |
3.77 |
3.68 |
- |
- |
PyTorch (analytical) |
11.90 |
9.45 |
- |
- |
Jax Batch (1 bucket) |
14.15 |
47.61 |
68.13 |
67.26 |
Jax Batch (4 buckets) |
5.17 |
44.84 |
89.49 |
106.80 |
Jax Batch (8 buckets) |
4.25 |
2.29 |
95.04 |
164.53 |
Jax Batch (4 cpus, 4 buckets) |
- |
44.08 |
294.72 |
492.94 |
Jax Batch (8 cpus, 8 buckets) |
- |
26.46 |
216.67 |
532.53 |
Surface alignment — alignments/s#
Approach |
n = 10 |
n = 100 |
n = 1000 |
n = 10000 |
|---|---|---|---|---|
Jax Surface |
3.72 |
4.12 |
- |
- |
PyTorch (autodiff) |
0.88 |
1.83 |
- |
- |
PyTorch (analytical) |
1.78 |
3.70 |
- |
- |
Jax Batch (1 bucket) |
4.76 |
4.88 |
6.63 |
4.34 |
Jax Batch (4 cpus, 4 buckets) |
- |
- |
- |
6.68 |
Surface + ESP alignment — alignments/s#
Approach |
n = 10 |
n = 100 |
n = 1000 |
n = 10000 |
|---|---|---|---|---|
Jax Surface+ESP |
2.65 |
3.80 |
- |
- |
PyTorch (autodiff) |
0.65 |
2.76 |
- |
- |
PyTorch (analytical) |
3.02 |
4.57 |
- |
- |
Jax Batch (1 bucket) |
2.85 |
2.30 |
2.71 |
- |
